Aero engine · 100 HP / fuel injection EFI
CA500I
17 490,00 €
EFI version of the CA500 with more precise engine control and a more modern operating concept.
Compared with the classic CA500, the CA500I adds fuel injection, engine management, and a stronger alternator. It is ideal for projects where mixture precision, tuning flexibility, and modern operation matter most.
Key features
- 4-cylinder horizontally opposed engine
- EFI electronic fuel injection
- Dual engine control units
- Engine management system
- 1.2 kW alternator @ 14V
- Max. operating altitude 6000 m
Technical data
- Displacement
- 1352 cm³
- Dimensions
- 630 x 580 x 455 mm
- Bore
- 84 mm
- Stroke
- 61 mm
- Dry weight
- 63.6 kg / 140.2 lbs
- Max. power
- 73.5 kW @ 5800 r/min
- Alternator
- 1.2 kW @ 14V
- Start mode
- Electric starter
- Ignition
- Digital dual ignition
- Fuel supply system
- EFI
- Fuel
- min. RON 95
- Cooling
- Liquid-cooled cylinder heads and air-cooled cylinders
- Gearbox
- i=2.43
- Max. operating altitude
- 6000 m
- TBO
- 2000 h
Brochure data

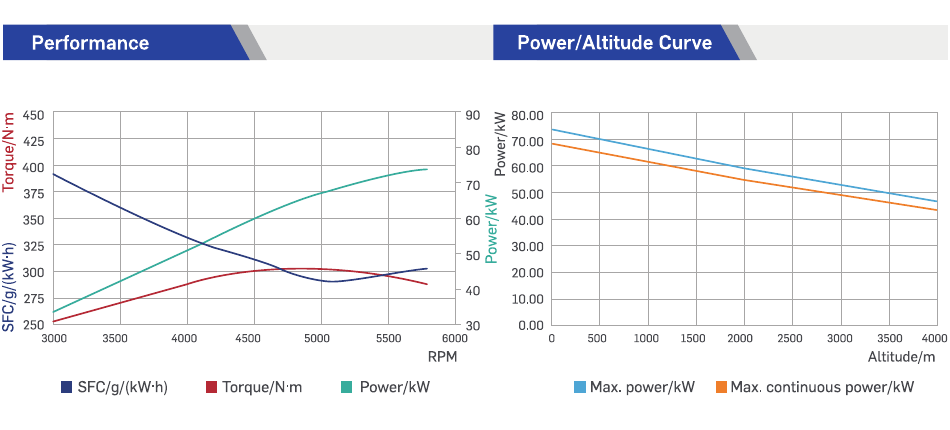

Performance curves
PDF brochure
Complete technical sheet
Download the original brochure with parameters, performance charts, and recommended applications.
Download PDF brochureReferences
Reference installations by SKYLEADER and DIRECT FLY
Photos are ordered by the priority supplied by the client. They serve as examples of installations and operation.
CA500I
Leave us your contact details and we will get back to you with availability, configuration options, or a recommended solution.
